Piston
- Bore diameter up to 250mm
- Provide with seals
- Provide Mill Certificate
- Provide Inspection Report.
- Made by CNC Machine.
- Our Hydraulic Piston withstand up to 400bar.
- Customized Hydraulic Piston also can make depends on customer design or seals.
Hydraulic Gland
- Bore diameter up to 250mm / Rod diameter up to 180mm
- Provide with seals
- Provide Mill Certificate
- Provide Inspection Report.
- Made by CNC Machine.
- Our Hydraulic Gland withstand up to 400bar.
- Customized Hydraulic Gland also can make depends on customer design or seals.
Clevis / Rod Eye
- Provide Mill Certificate
- Provide Inspection Report.
- Provide Spherical Bearing with Circlip, If need.
- Made by CNC Machine.
- Our End Cover withstand upto 400bar.
- Customized Clevis / Rod Eye also can make depends on customer design or seals.
- Weld ability.
Honned Tube
- Bore Ranges from 30mm to 300mm (Metric)
- Bore Ranges from 1.5 Inch to 12 Inch (Metric)
- Honned Tube Length upto 7500mm
- Material – ST52
- Tolerance Grade H8
- Surface Roughness- 20 micro Inches

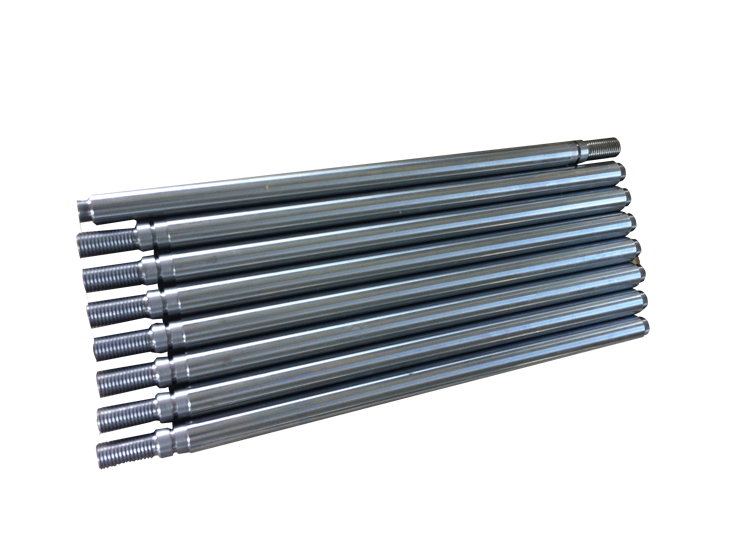

Hard Chrome Plate Rod
- Rod Ranges from 16mm to 200mm (Metric)
- Rod Ranges from 0.875 Inch to 8 Inch (Metric)
- Rod Length upto 7500mm
- Material – AISI 1045 / 1050
- Standard Plate Thickness 0.127mm
- Hardness- 69~71 HRC.
- Tolerance Grade f7
- Surface Finish- 12 RMS.
